USER'S GUIDE 6-SEATER PROFILED MOTORHOME
Get ready for your motorhome adventure from Vitoria with Otsoa Motorhomes
!
!
Giottiline siena 386f (automatic transmission)
Consult our guide to using the profiled motorhome for hire in Vitoria. With video tutorials so you can learn how to operate the vehicle and become an expert in the camper world.
Connections and emptying of the motorhome:
In this video you can see what elements we find on the exterior of the vehicle:
- How to empty grey water.
- Toilet compartment (poty)
- How to plug into 220v.
- etc.
How the control panel works:
In this video we explain the operation of the panel from which you can control the operation of the water, electricity and check the charge of the vehicle/hab. Remember that we are totally autonomous, that is, it is not necessary to be in a campsite or motorhome area to be able to have electricity:
How does the water work in the motorhome?
- The motorhome has a 100 litre fuel tank. clean waters. This water is used for showering, washing up, etc.
- The grey water This is the waste water that comes from using the kitchen sink, the shower and the washbasin. Bear in mind that anything you pour down the sink will collect in a tank, so avoid pouring down liquids that might cause unpleasant odours 🤢🐟.
- The sewage are the ones that build up in the toilet cistern.
You can easily refill and empty in motorhome areas, campsites, rest areas, some petrol stations, etc.
How do the heating and hot water systems work?
In this video, we explain how to use the control panel to turn on the heating and hot water.
⚠️Remember: it takes about 20 minutes for the water to heat up, so you need to turn it on in good time.
How does the motorhome battery work?
Our motorhomes feature a premium electrical system, fitted with a 100 Ah lithium auxiliary battery, so you can enjoy plenty of freedom without having to rely on a campsite.
Travel with complete peace of mind: even if this battery runs out, you’ll always be able to start the car, as the motor’s battery is separate.
The auxiliary battery can be recharged in three ways:
☀️ With the solar panel.
🚐 Whilst driving (approx. 40 A/h).
🔌 Connecting the motorhome to the mains supply (230 V).
Inverter
When you’re not connected to a 220V supply, you’ll be able to use all the motorhome’s USB sockets without any problems. However, the only socket that will work is the one connected to the inverter, which you’ll find under the table, on the bench behind the driver’s seat.

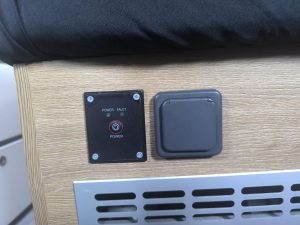

To activate it, you need to press the button shown in the image below so that it turns green:
⚠️ Remember to switch off the power button when you’re not using the socket, as the inverter uses up battery power simply by being switched on, even if you haven’t plugged anything in.
How to empty the toilet in the motorhome?
In this video, we explain how to empty the toilet.
☝️Remember to make sure the toilet flap is properly closed before removing the cistern. If you find that the cistern gets stuck when you try to remove it, it’s likely that the flap isn’t properly closed – don’t be a bit of a klutz!
Please, it is VERY important that the emptying of the grey and black water The water from the motorhome must be emptied into specific drains for this purpose. This type of water is polluted, so emptying the tank in a place not designed for this purpose can be harmful to the environment. Respect
and leave no trace.
How to lower the motorhome’s fold-down bed correctly
In this video you can see how to correctly lower the tilting bed of the profiled motorhome.
It is VERY important that you do not put any weight on the bed or lean on the bed while raising or lowering it. Otherwise, the fuse might blow and the motor that raises and lowers the bed will stop working… If this happens to you, just let us know and we’ll help you sort it out.
Ready to roll! 🚐
This guide is designed to give you a basic idea of how the motorhome works; don’t worry if anything isn’t clear. Make a note of any questions you have and we’ll explain everything to you on the day of handover. What’s more, if you have any questions whilst you’re travelling, simply get in touch with us.
